Boss Applicators - Interactive Parts Manual
| Number | SKU | Description |

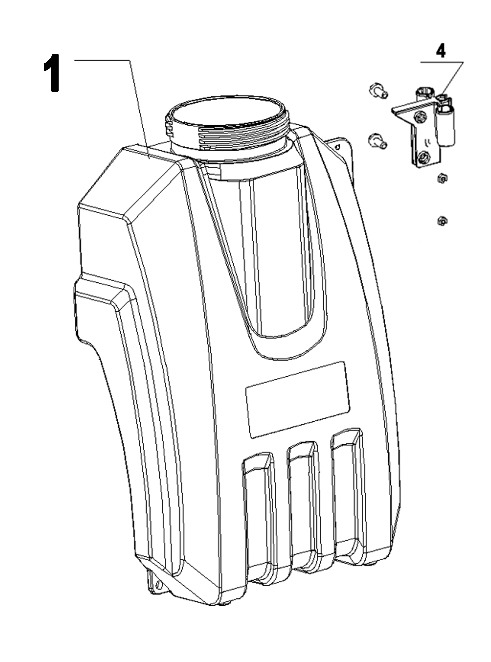

| 1-1 | PDS-1-1G-C | Tank 1 Gallon c/w Filtration Assembly |
| 1-2 | PDS-1-2.5G-C | Tank 2.5G 10 Liter c/w Filtration Assembly |
| 1-3 | PDS-1-4G-C | Tank 4G 15 Liter c/w Filtration Assembly |

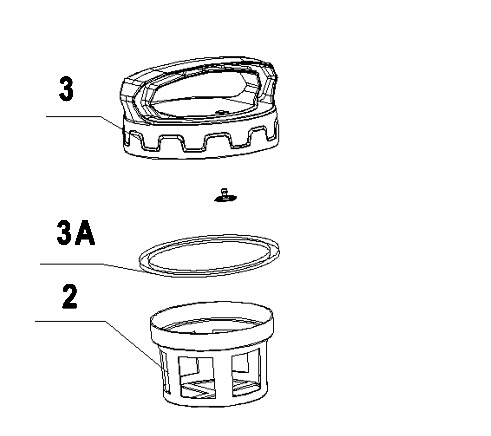

| 2 | PDS-2-C | Screen Filter |
| 3-1 | PDS-543BLACK-C | Tank Lid Black Boss Series 1G, 2.5G, 4G |
| 3-2 | PDS-543BLUE-C | Tank Lid Blue Boss Series 1G, 2.5G, 4G |
| 3A | PDS-543-A-C | Tank Lid Seal |
| 4 | PDS-678-C | Hose Mounting Bracket |

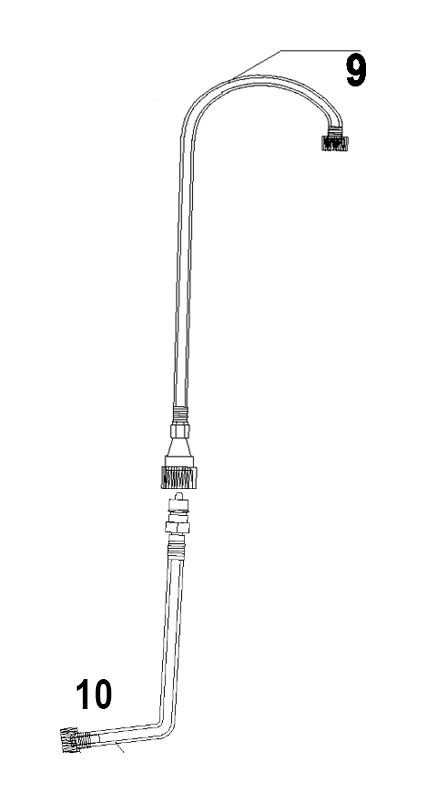

| 9-1 | PDS-125-M8F-SF18-C | Trigger Gun Hose - M8 Female to SF1/8 Male Plug for Boss Pro |
| 9-2 | PDS-125-M8F-SF18-E-C | Trigger Gun Hose - M8 Female to SF1/8 Male Plug for Boss Eliminator |
| 9-3 | PDS-125-11-QD-C | Hose Connection to Pump + Hose Assembly for QD Gun for Boss Pro |
| 9-4 | PDS-125-11-QD-E-C | Hose Connection to Pump + Hose Assembly for QD Gun for Boss Eliminator |
| 10-1 | PDS-125-M8M-7-C | Hose Connection to Pump Hose Barb to M8 Brass Male Thread for Boss Pro |
| 10-2 | PDS-125-M8M-7-E-C | Hose Connection to Pump Hose w/ Gear Clamp Barb to M8 Brass Male Thread for Boss Eliminator |

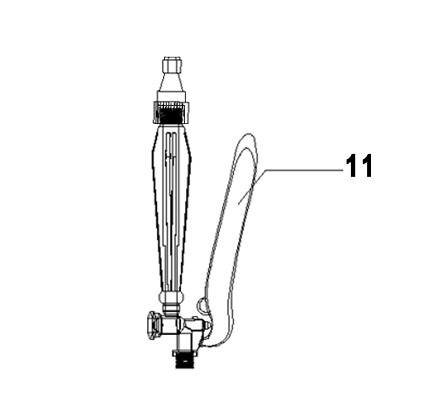

| 11-1 | PDS-6111-MTG-C | Metal Trigger Gun 11/16 Output Threads c/w viton Seals |
| 11-2 | PDS-6111-QD-C | Trigger Gun 11/16 Output Threads Plus Quick Disconnect Input |
| 12 | PDS-2-112N900-C | O Ring Output - Spray Tip Nut (6 per pack) |
| 13-1 | PDS-018-C | 10”-18” Extension Wand (For Pro-128) |
| 13-2 | PDS-046-C | 20”-39” Extension Wand (For Pro-320, Pro-512) |
| 13-3 | PDS-046-HD-C | 20”-39” Eliminator Extension Wand (For E-128, E-320 & E-512) |

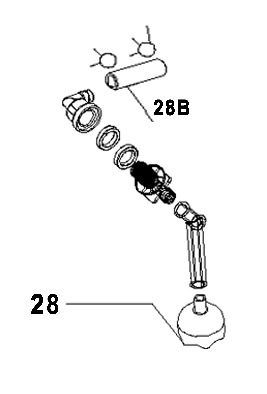

| 28 | PDS-24-28-C | Siphon Tube, Screen Filter and Connection Tube |
| 28B | PDS-20-23-C | Hose - Pump to Filter connection c/w Brass Clamps |

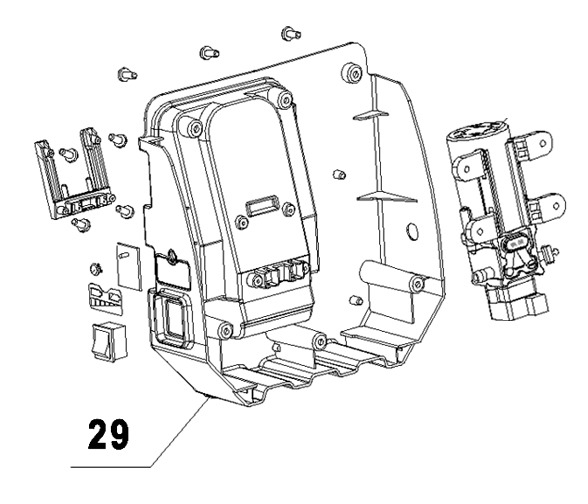

| 29-1 | PDS-2939-183330BLACK-C | Operating System: Repair Kit Complete, Pump, Circuit Board, Switch and Battery Case - BLACK CASE |
| 29-2 | E-2939-183330BLUE-C | Eliminator- Operating System Repair Complete - Pump, Circuit Board, Switch and BLUE Battery Case |

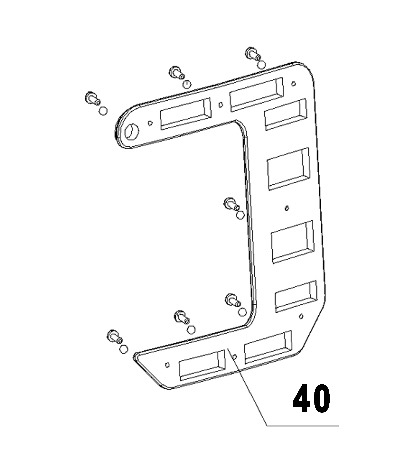

| 40 | PDS-404142-C | Cushion – Back Padding and Screws |

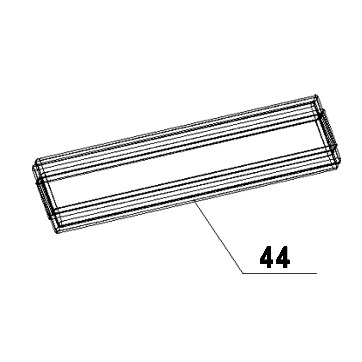

| 44 | PDS-23025-C | Harness, Full Body Quick Release |

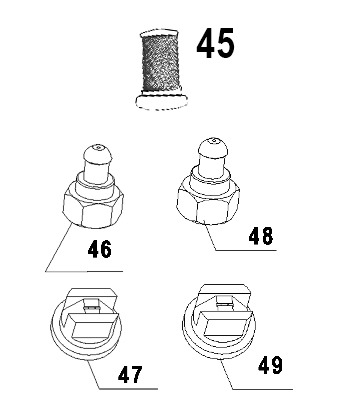

| 45 | PDS-0094-C | Screen and Check Valve |
| 46 | PDS-08-C | High Flow Pin and Cone Tip Brass |
| 47 | T-8002-C | High Flow Fan Spray Tip Brass |
| 48 | PDS-03-C | Low Flow Pin and Cone Tip Brass |
| 49 | T-8001-C | Low Flow Fan Spray Tip Brass |

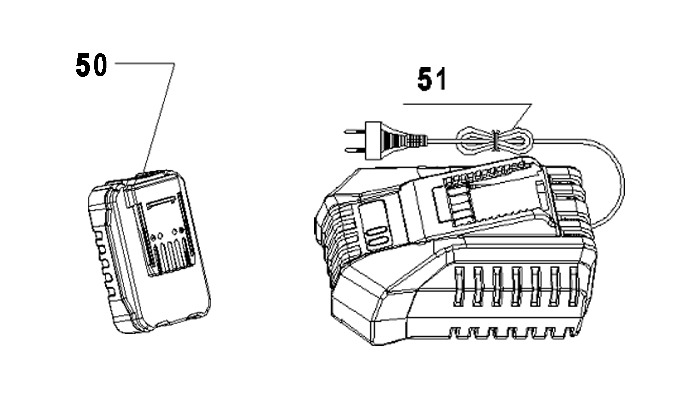

| 50 | PDS-36-C | 18 Volt DC Rechargeable Battery |
| 51-1 | PDS-43-C | 120 Volt Quick Charger |
| 51-2 | PDS-43-12V-C | Quick Charger - 12 V DC Charger - Cigarette Style Socket |
